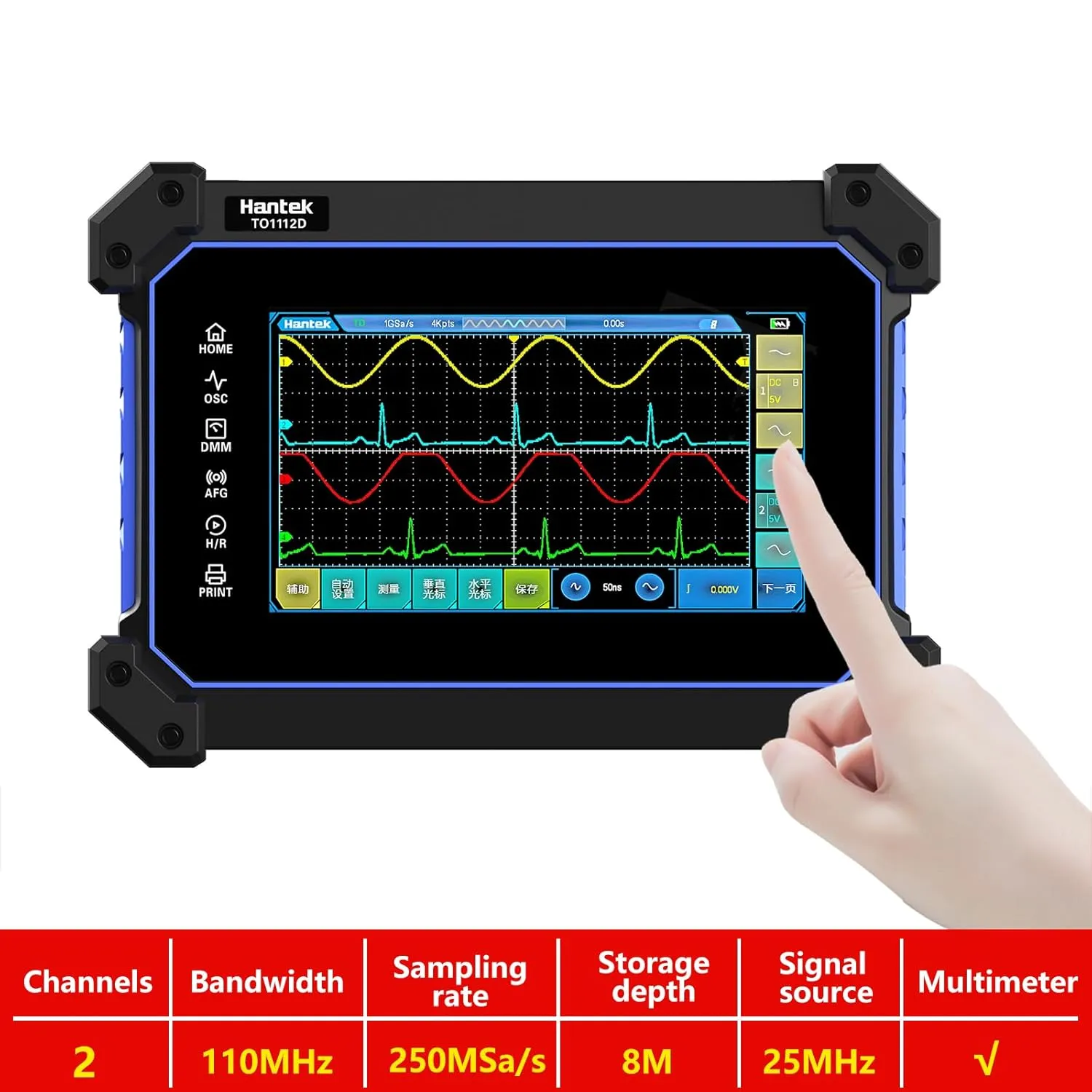

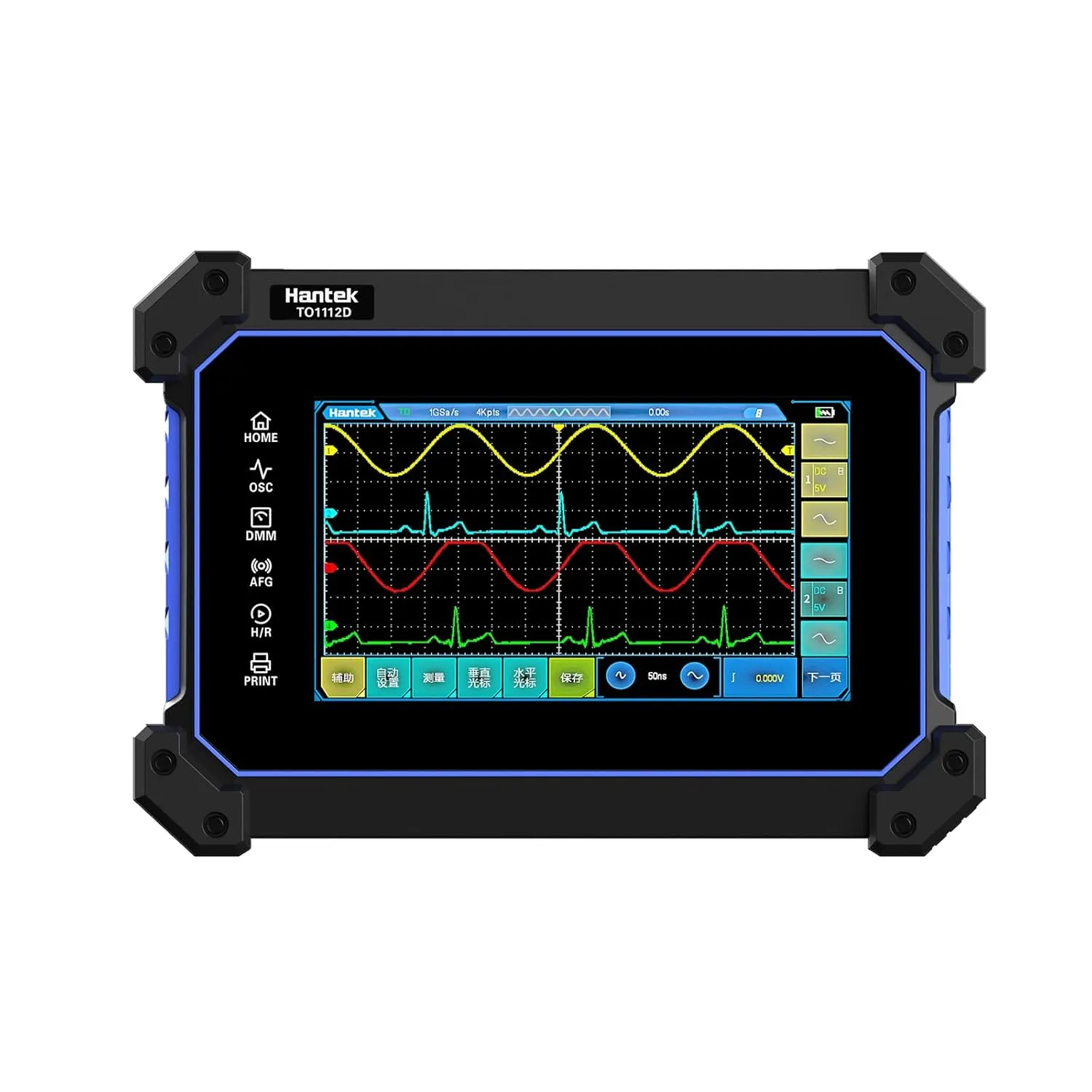

- ⚡ Multi Touch Large Screen: 7inch TFT LCD Large Screen, super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.
- ⚡ 2-channel Digital Storage Oscilloscope: bandwidth up to 110MHz, 250MSa/s high sampling rate, 8M large storage depth; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.
- ⚡ Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.
- ⚡ Support Multiple Fast Charging Protocols: standard 18W for fast charging; The type-C interface is compatible with mobile phones and can share a set of charging equipment.
- ⚡ Provide high-precision multimeter with data recording, storage, trend chart, statistical analysis and other function A variety of arbitrary waveforms are built into the signal generator, and the highest output frequency is 20MHz One key waveform storage, convenient and fast.
Features:
*Integrates Multiple Functions: digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.
*2-channel Digital Storage Osilloscope: bandwidth up to 110MHz, 250MSal/s high sampling rate, 8M large storage depth; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.
*Function of Arbitrary Function Signal Generator. the highest output frequency reaches 25MHz, 12bit high resolution, 200Ms/s high sampling rate, Built in a variety of arbitrary waves, support AM/FM modulation, output high resistance and low resistance can be switched.
*Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has itis own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.
*Suspension Foot, Hands-iree: unique suspension foot design, free hands; It can be used and put at any time. It is anti flling and anti-seismic, sturdy and durable.
*High Power and Long Endurance: built in high capacity detachable lithium battery, full power, which has long endurance and standby time.
*Support Multiple Fast Charging Protocols: standard 18W charger for fast charging; The type-C interface is compatible with mobile phones and can share a set of charging equipment.
*7 "TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.
Specifications:
Model: TO1112C TO1112D (Optional)
T01112C: None
T01112D: 25MHz signal source
OSCILLOSCOPE:
Channel: 2 Analog channels
Bandwidth: 110MHz
Sampling Rate: 250MSa/S
Storage Depth: 8Mpts
Signal Source: 25MHz (T01112D)
ARBITRARY WAVEFORM GENERATOR:
- Package Dimensions : 17.2 x 9.4 x 3.9 inches; 4.7 Pounds
- Batteries : 2 AA batteries required. (included)
- Date First Available : August 18, 2023
- Manufacturer : Hantek
